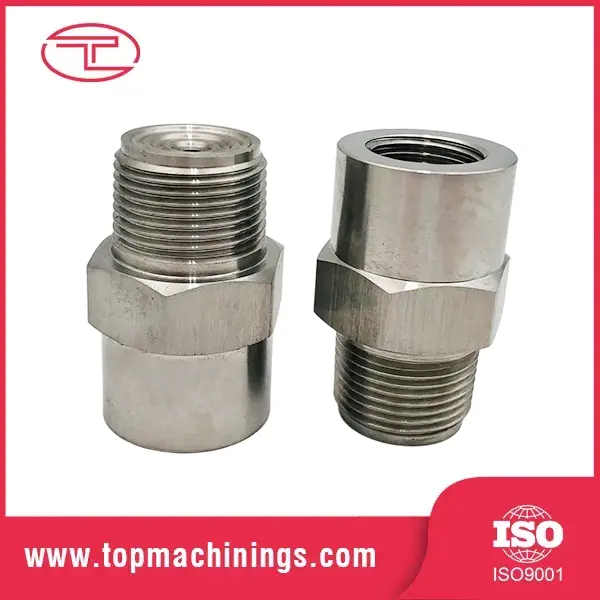

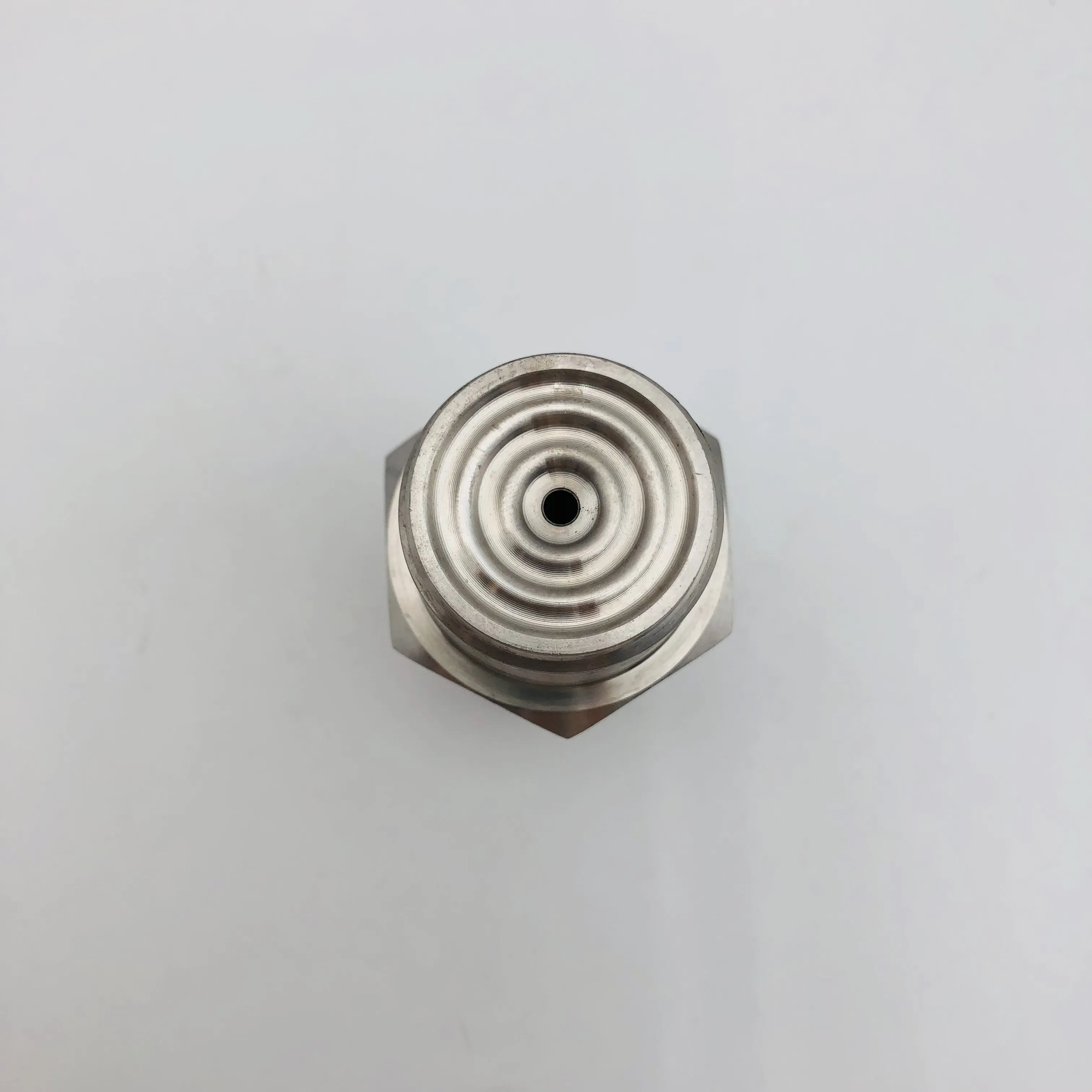

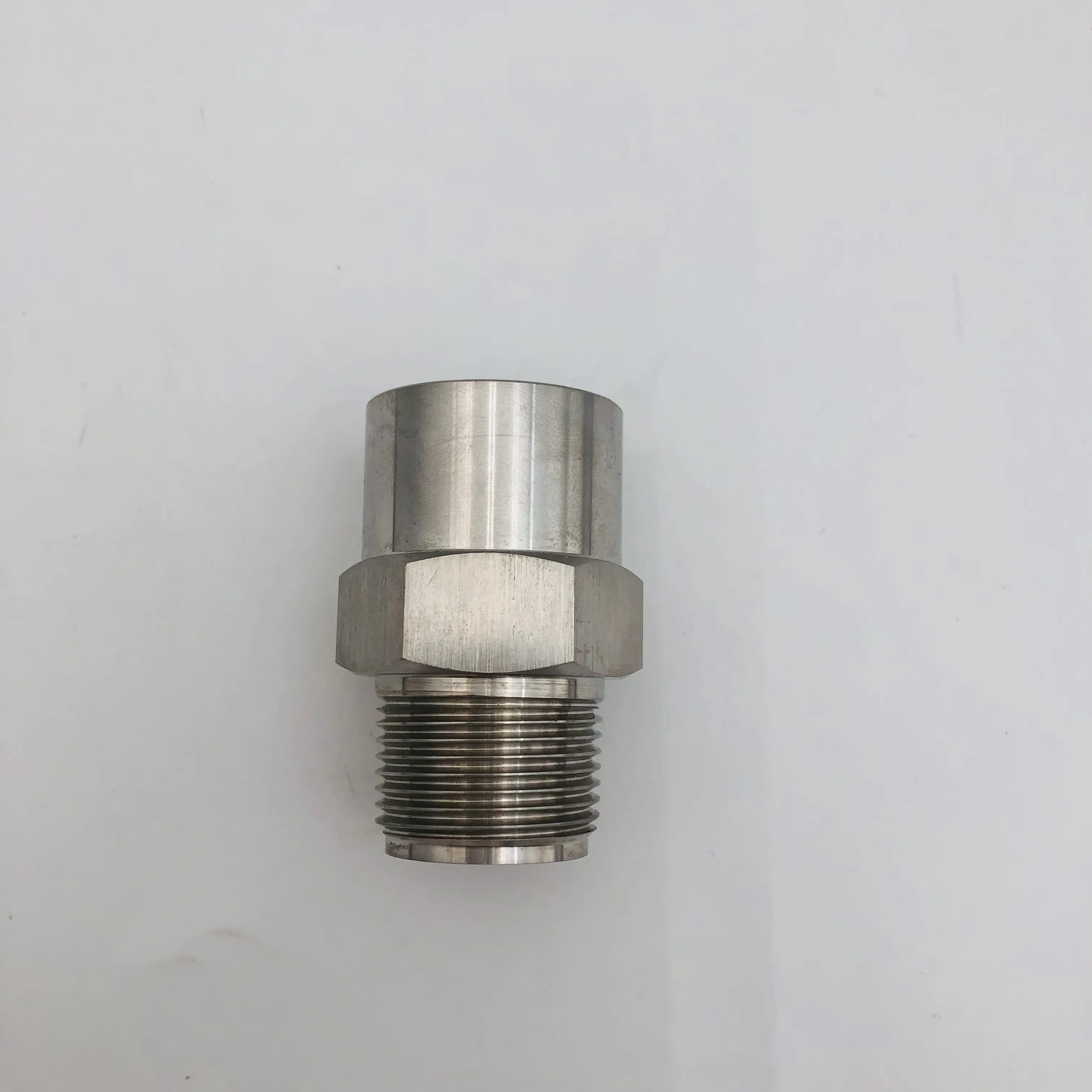

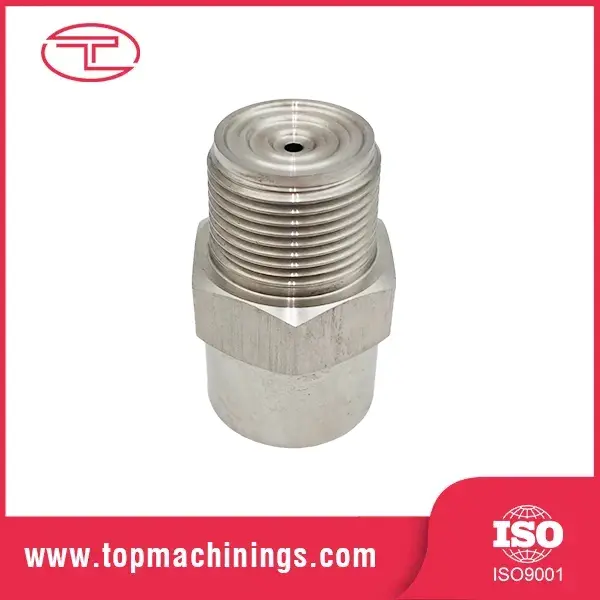

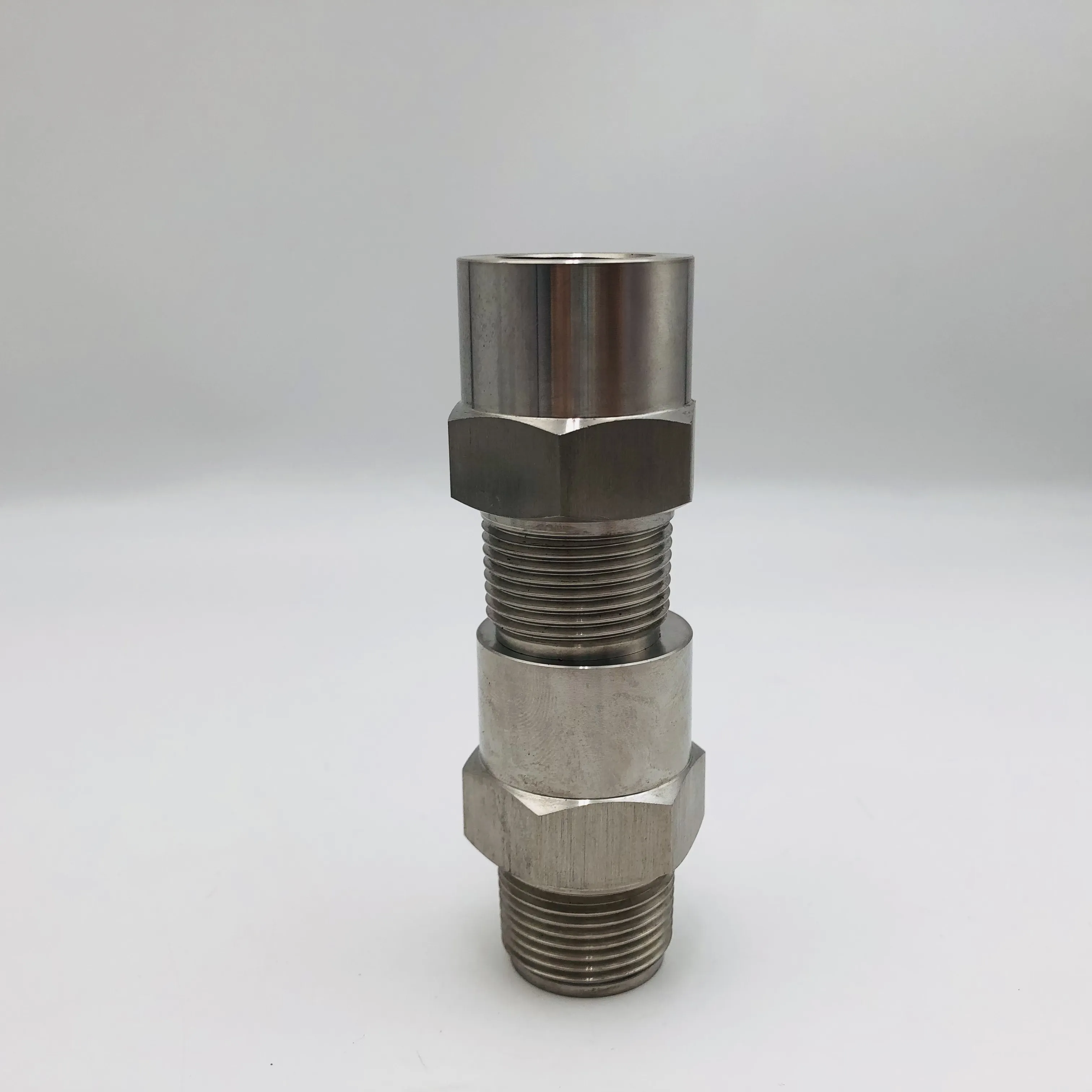

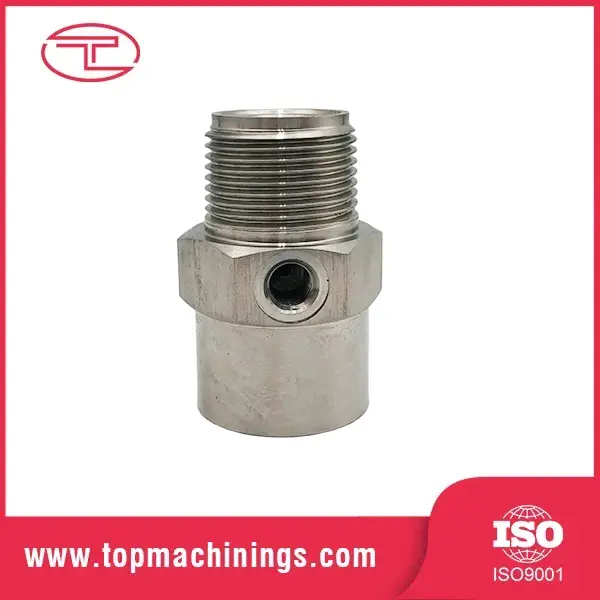

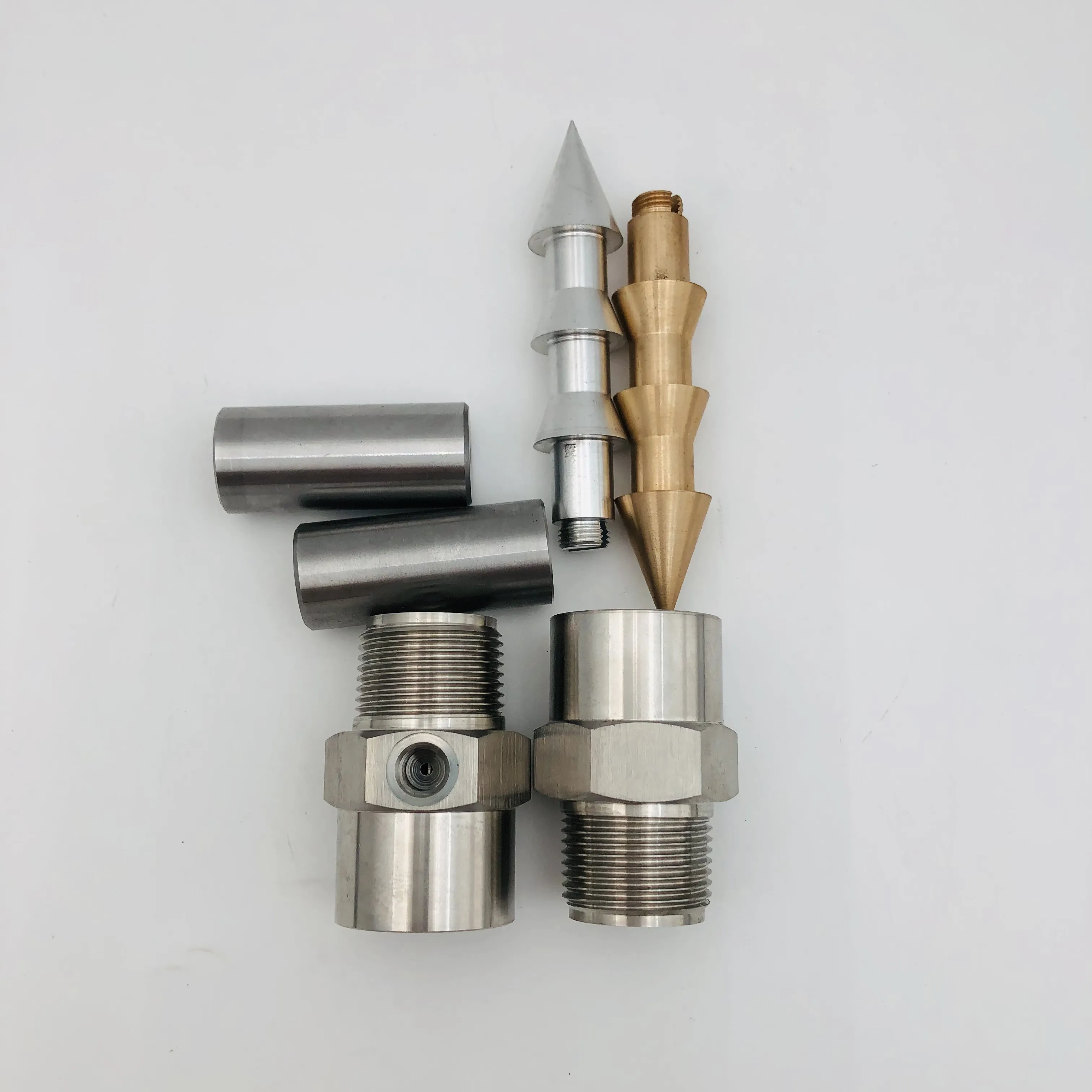

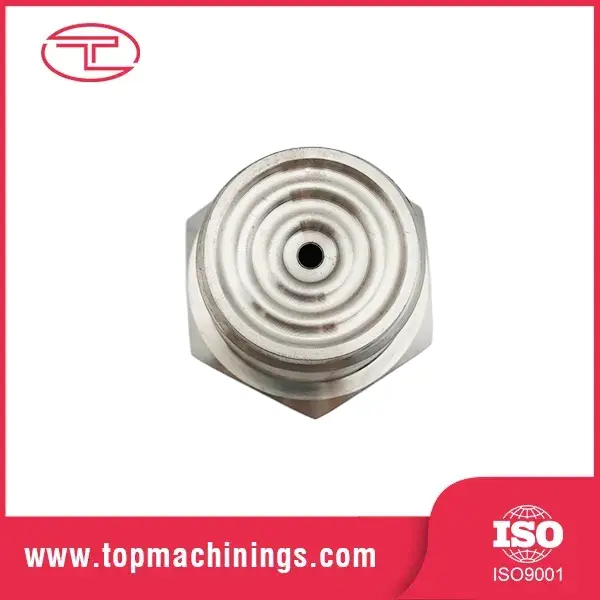

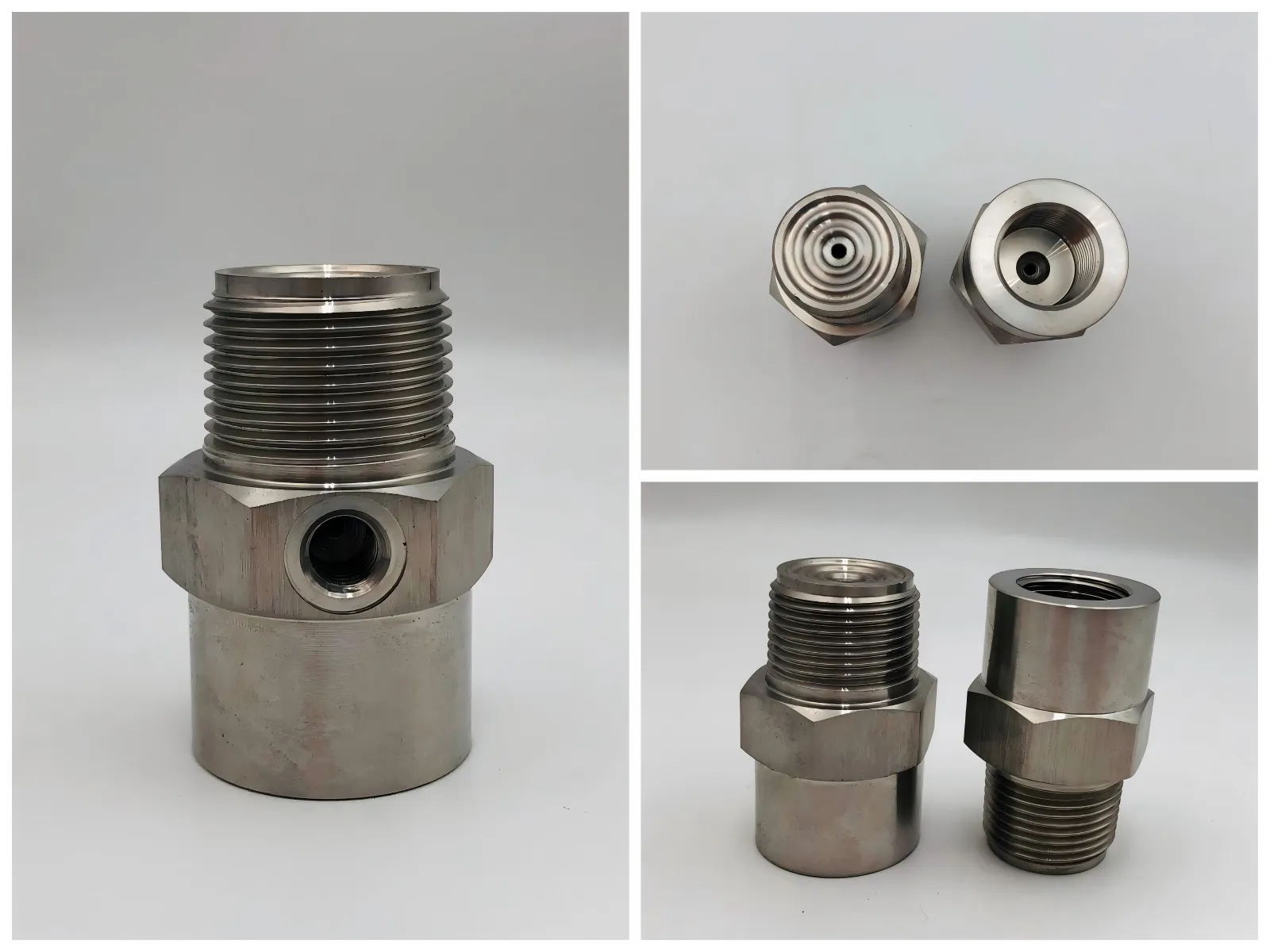

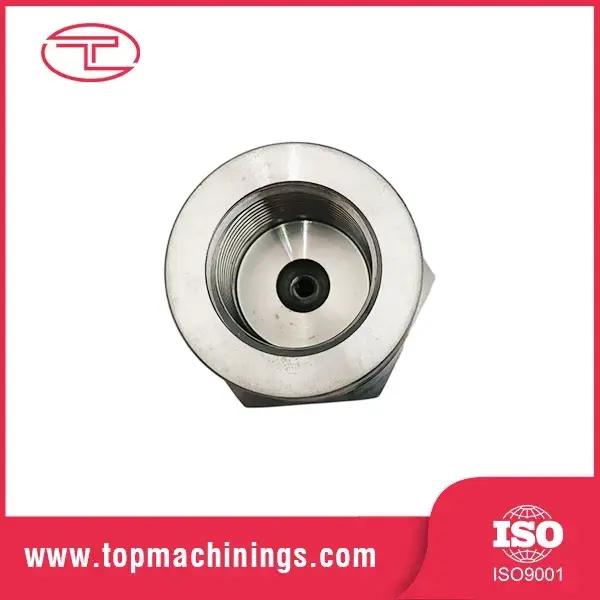

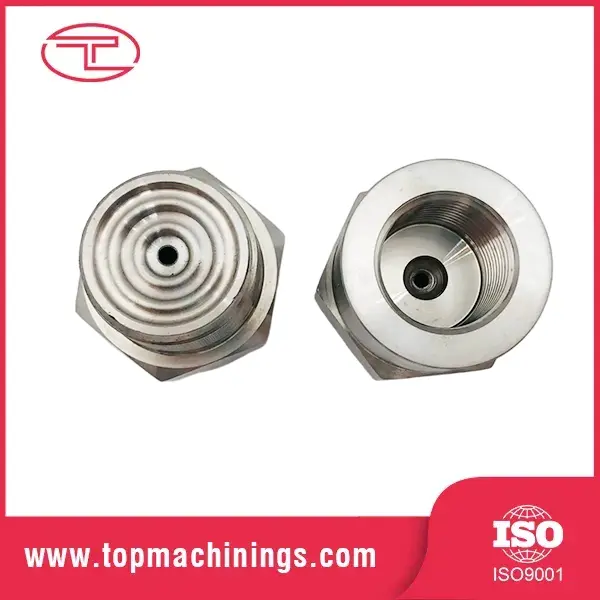

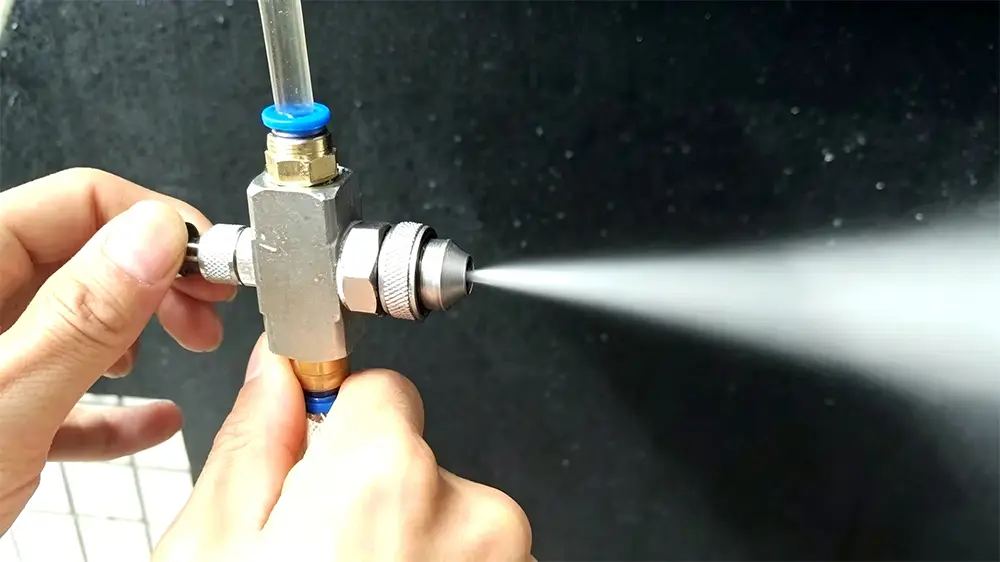

Stainless Steel Full Cone Spray Nozzles

ကြိုးအရွယ်အစား

Flow Code

Orifice Dia (မီလီမီတာ)

အများဆုံးအခမဲ့ Passage Orifice Dia(mm)

0.5 ဘား

0.7 ဘား

1.5 ဘား

2 ဘား

၃ ဘား

4 ဘား

5 ဘား

6 ဘား

၇ ဘား

10 ဘား

1.5 bar ထောင့်(°)

1/8"

1

0.79

0.64

0.38

0.57

0.82

0.62

0.74

0.85

0.94

1

1.1

1.3

58

1/8"

1.5

1.2

0.64

0.49

0.76

0.81

0.93

1.1

1.3

1.4

1.5

1.7

1.9

65

1/8"

2

1.2

1

0.65

0.87

1.1

1.2

1.5

1.7

1.9

2

2.2

2.6

50

1/8"

3

1.5

1

0.98

1.1

1.6

1.9

2.2

2.5

2.8

3.1

3.9

4.5

65

1/8"

3.5

1.6

1.3

1.1

1.3

1.9

2.2

2.6

3

3.3

3.6

3.9

4.5

50

1/8"

3.9

2

1

1.3

1.5

2.1

2.4

2.9

3.3

3.7

4

4.3

5.1

84

1/8"

5

2

1.3

1.6

1.9

2.7

3.1

3.7

4.2

4.7

5.1

5.5

6.5

65

1/4"

6.1

2.3

1.3

2

2.3

3.3

3.8

4.5

5.2

5.7

6.2

6.7

7.9

74

1/4"

6.5

2.38

1.6

2.1

2.5

3.5

4

4.8

5.5

6.1

6.7

7.1

8.4

50

1/4"

10

3.18

1.6

3.3

3.8

5.4

6.2

7.4

8.5

9.4

10.2

11

13

67

1/4"

12.5

3.2

1.6

4.1

4.8

6.8

7.7

9.3

10.8

11.8

12.8

13.7

16.2

74

3/8"

9.5

2.6

2.4

3.1

3.6

5.1

5.9

7.1

8.1

8.9

9.7

10.4

12.3

50

3/8"

15

3.6

2.4

4.9

5.7

8.1

9.3

11.2

12.7

14.1

15.4

16.5

19.4

67

3/8"

20

4

2.8

6.5

7.6

10.8

12.4

14.9

17

18.8

20

22

26

80

3/8"

22

4.5

2.8

7.2

8.4

11.9

13.6

16.4

18.7

21

23

24

28

90

1/2"

16

3.5

3.2

5.2

6.1

8.7

9.9

11.9

13.6

15.1

16.4

17.6

21

50

1/2"

25

4.6

3.2

8.2

9.5

13.5

15.4

18.6

21

24

26

27

32

67

1/2"

32

5.2

3.6

10.4

12.2

17.3

19.8

24

27

30

33

35

41

75

1/2"

40

6.2

3.6

13.1

15.2

22

25

30

34

38

41

44

52

91

3/4"

50

6.7

4

16.3

19.1

27

31

37

42

47

51

55

65

94

3/4"

2.5

4.9

4.4

9.6

11.2

15.9

18.2

22

25

28

30

32

38

50

3/4"

4

6.4

4.4

15.4

18

26

29

35

40

44

48

52

61

70

3/4"

7

9.5

5.2

27

31

45

51

61

70

78

84

91

107

92

1"

4.2

6

5.6

16.2

18.9

27

31

37

42

47

51

54

64

50

1"

7

8.3

5.6

27

31

45

51

61

70

78

84

91

107

68

1"

8

9.5

5.6

31

36

51

58

70

80

89

91

104

122

81

1"

10

11.9

5.6

38

45

64

73

88

100

111

121

130

153

90

1"

12

11.9

6.4

46

54

77

87

105

120

133

145

155

183

92

1 1/4"

6

7.4

6.4

23

27

38

44

53

60

67

72

78

92

50

1 1/4"

10

9.6

6.4

38

45

64

73

88

100

111

121

130

153

67

1 1/4"

12

10.7

6.4

46

54

77

87

105

120

133

145

155

183

70

1 1/4"

14

12.3

6.4

54

63

89

102

123

140

155

169

181

215

80

1 1/2"

20

15.1

7.9

77

90

128

146

175

200

220

240

260

305

93

1 1/2"

10

9.5

8.7

38

45

64

73

88

100

111

121

130

153

50

1 1/2"

16

12.7

8.7

62

72

102

116

140

158

178

193

210

245

74

1 1/2"

20

14.3

8.7

77

90

128

146

175

200

220

240

260

305

76

1 1/2"

30

18.3

10.3

115

135

191

220

265

300

330

360

390

460

94

2"

17

12.7

11.1

65

76

108

124

149

170

189

205

260

300

50

2"

30

17.3

11.1

115

135

191

220

265

300

330

360

390

460

74

2"

35

19.2

11.1

135

157

225

255

310

355

390

425

455

540

77

2"

40

21

11.1

154

180

255

295

350

400

445

485

520

610

80

2"

50

23.8

14.3

192

225

320

385

440

500

560

610

740

770

85

2"

60

28.6

14.3

230

270

385

440

530

600

670

730

780

920

100
